Controller - 3 outputs

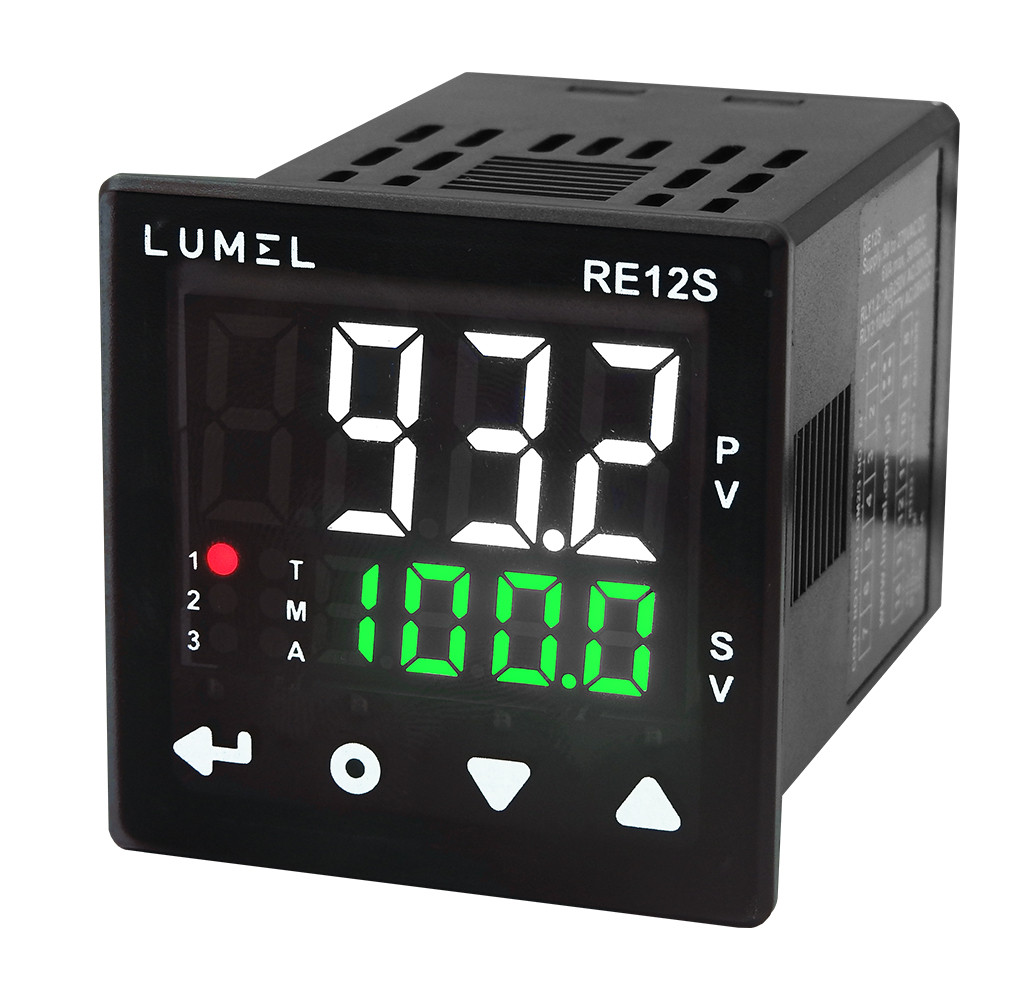

RE12S

NEU

The RE12S Universal PID Controller is an advanced and versatile device designed for precise process control in various industrial applications. With adaptive, auto, and self-tuning PID as well as ON-OFF control capabilities, the RE12S ensures optimal performance in maintaining desired setpoints. It features a dual LED display, capacitive touch keypad, and supports up to 128-step profiling for complex control requirements. The unit's robust communication options, including RS485 MODBUS RTU, allow seamless integration into existing systems, enhancing both functionality and connectivity.

Preise / Anfrage

Zur Partnerzone

Features/Characteristics:

  • Control Action: Adaptive, Auto, Self-tune PID, ON-OFF
  • Universal Input: Thermocouple (J, K, T, R, S, C, E, B, N, L, U, W, Platinel II), RTD (PT100)
  • Display: 4+4 digits LED display (White+Green)
  • Profile Controller: Up to 128 steps
  • Communication: RS485 MODBUS RTU
  • Power Supply: 90...270 VAC/DC (50/60Hz)
  • Alarm Outputs: Multiple settings including deviation high/low, absolute high/low, band, sensor break
  • Hysteresis: 0.1...99.9°
  • Compact design with short depth for easy panel mounting,
  • Dimensions: 52 x 52 mm
