- 1x RS232 port for RTS/CTS signals
- 1x RS485
- 802.11b/g/n WiFi support
- 1x Ethernet WAN/LAN port
- Power supply 5-36V - power supply socket (5.5/2.1) + industrial power socket
- Electrostatic protection 15/8 kV
- DHCP support, dynamic or static IP
- Support STA/AP/AP+STA mode
- External antenna SMA connector (3 dBi antenna included)
- Configuration via WEBserver
- Serial port speed 1200 bps to 460800 bps, control bit None, Odd, Even, Mark and Space
- Modbus RTU / Modbus TCP IP
- Operating modes: TCP Server, TCP Client, UDP Client, UDP Server,
- Virtual COM port for Windows PC
- Heartbeat
- Hardware Watchdog

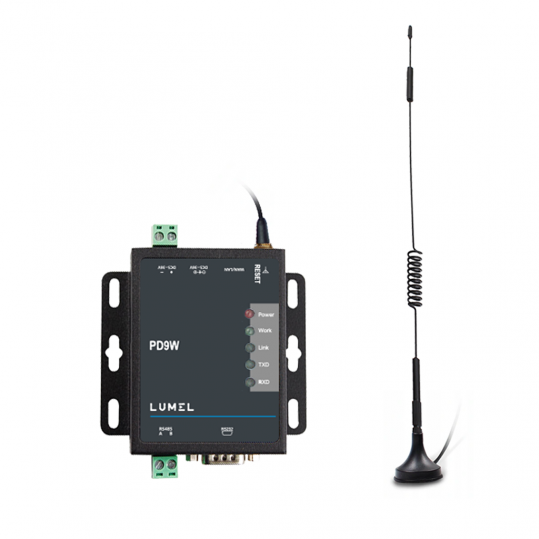

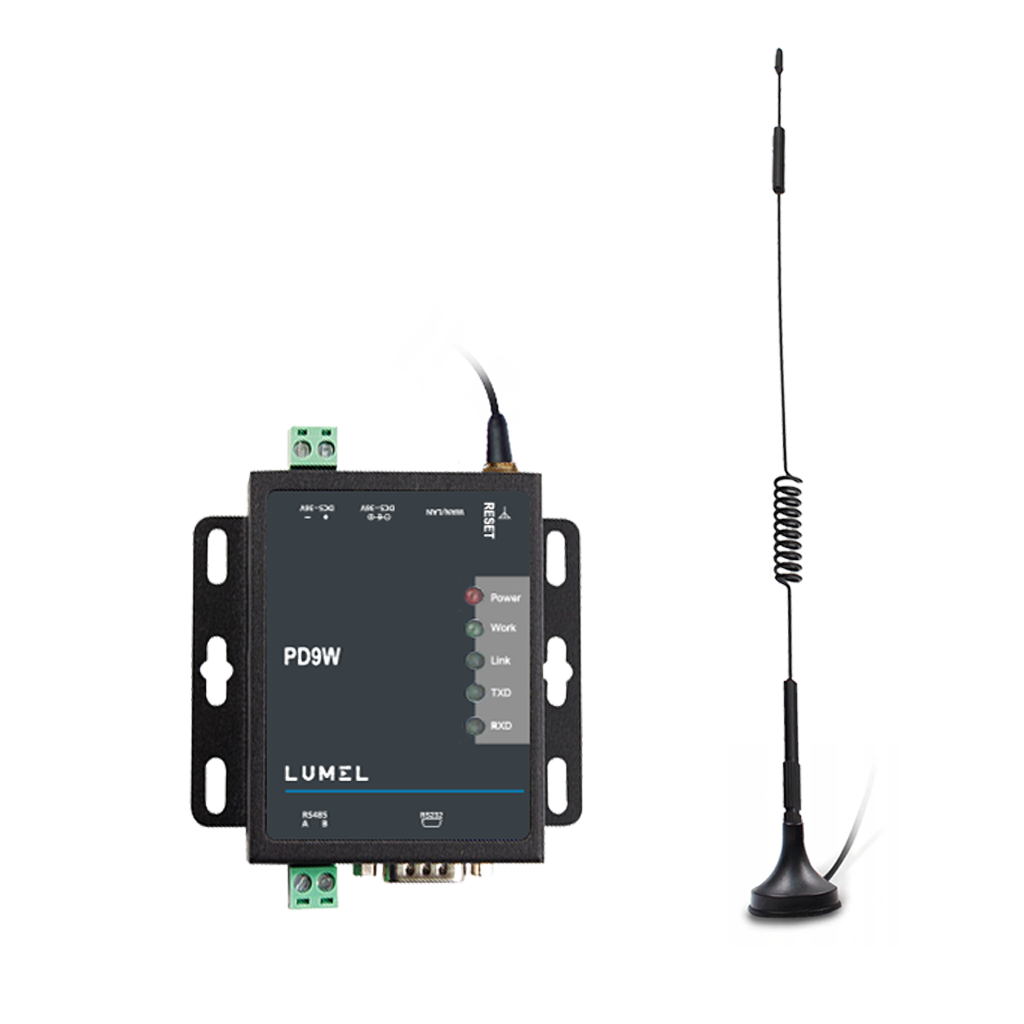

RS-485 / WiFi/ ETHERNET converter
PD9W
The PD9W is an industrial RS232/RS485 to WiFi/Ethernet media converter in an industrial metal housing. The device provides transparent data transmission. It supports the Modbus RTU and TCP IP protocols.
