- Measurement of 54 power network parameters, including current and voltage harmonics up to 63rd in 1-phase 2-wire or 3-phase 3 or 4-wire balanced and unbalanced systems.
- High accuracy class (0.2S for active energy).
- Graphical color display: LCD TFT 3,5’’, 320 x 240 pixels, fully configurable by a user (10 screens, 8 parameters in each).
- Additional 2 screens for harmonics presentation and 1 dedicated screen for visualization in the form of an analog meter.
- Indications include the values of programmed ratios.
- Memory of minimum and maximum values
- 2 configurable alarm outputs.
- Supervisory relay mode for alarm outputs.
- Programming of parameters using free eCon software.
- Battery backup RTC.
- Overall dimensions: 96 x 96 x 77 mm.
Power quality meters with Modbus RTU (RS485) protocol.

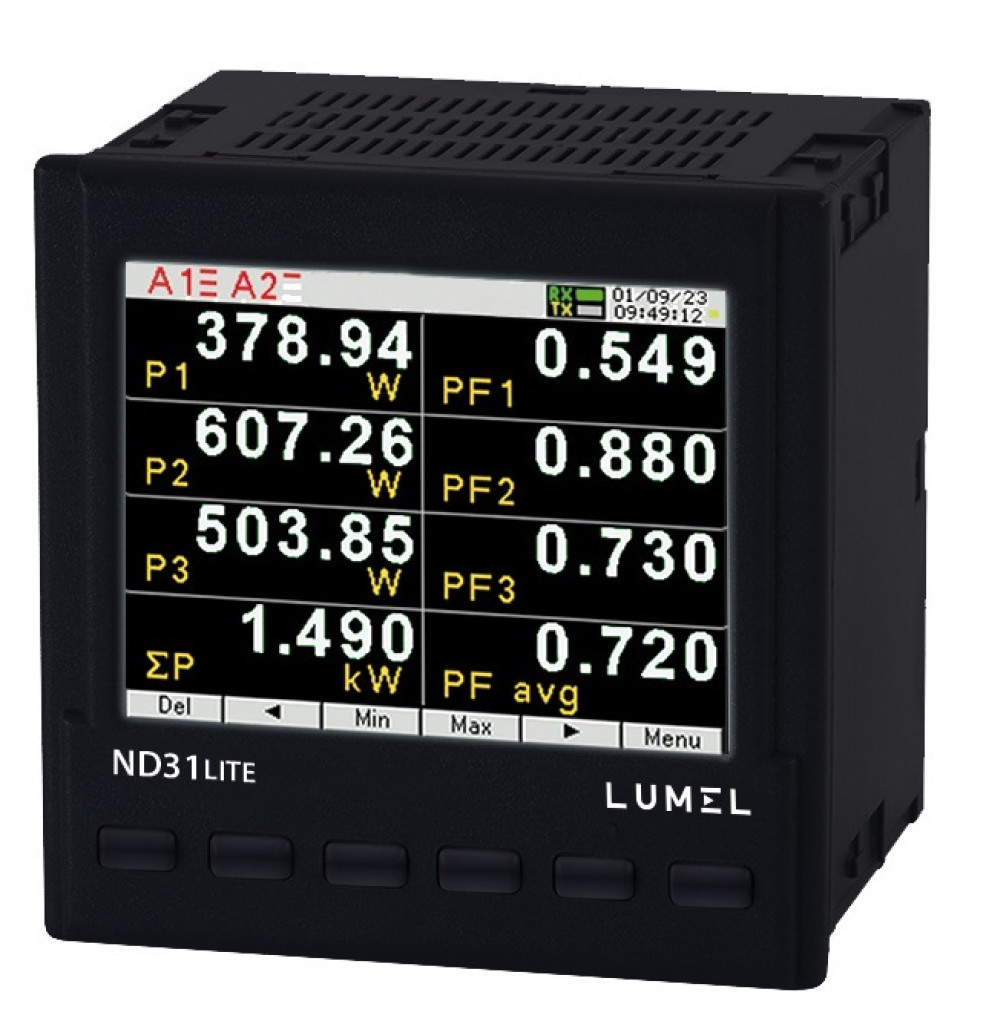

ND31LITE
The ND31LITE network parameter meter, has been designed specifically for applications requiring high-quality measurement equipment that will provide the customer the ability to monitor network parameters via the popular and reliable RS-485 interface with MODBUS protocol.
