- Measurement of 85 parameters, THD and harmonics up to 31st for voltage & current
- Two optional outputs. It can be configured as pulse output for energy measurement , limit output , timer function and RTC relay.
- Binary output
- USB interface for configuration of the instrument, onsite access of measured parameter and downloading of logged data.
- Fully configurable LCD screen - possibility of programming 28 independent screens
- RTC - real time clock
- Archiwum pomiarów – w pamięci wewnętrznej 8MB
- Data logging - meter has inbuilt 8MB Flash for:
- event logging
- time based logging
- load Profile logging
- LCD display with Back-lit
- Remote access of measured parameter via RS-485 (Modbus RTU) or through Ethernet interface (Modbus TCP/IP or BACnet IP).

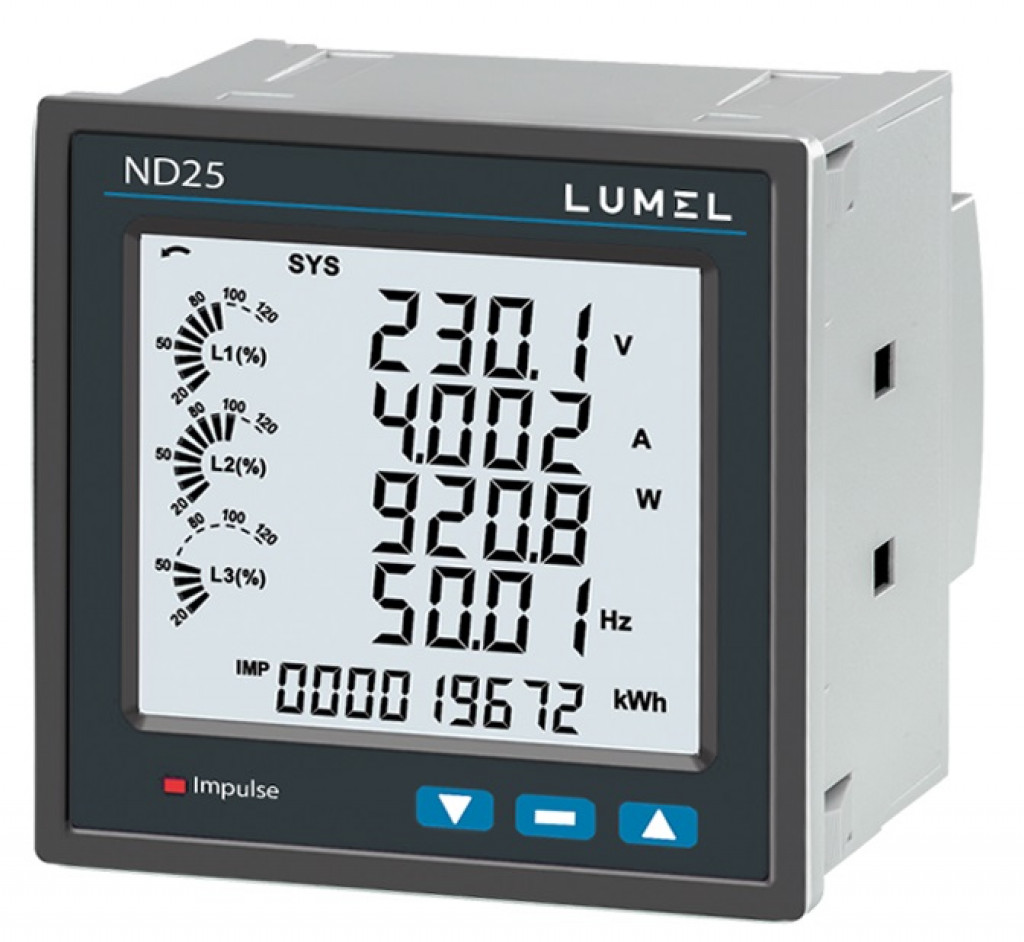

Power network meter ND25
ND25
ND25 meter measures important electrical parameters in 3 phase 4 wire,3 phase 3 wire and 1 phase 2 wire network. It measures electrical parameters like active / reactive / apparent energy , power and all basic parameter. The instrument has two optional outputs. It can be configured as pulse output for energy measurement, limit output, timer function and RTC relay.
