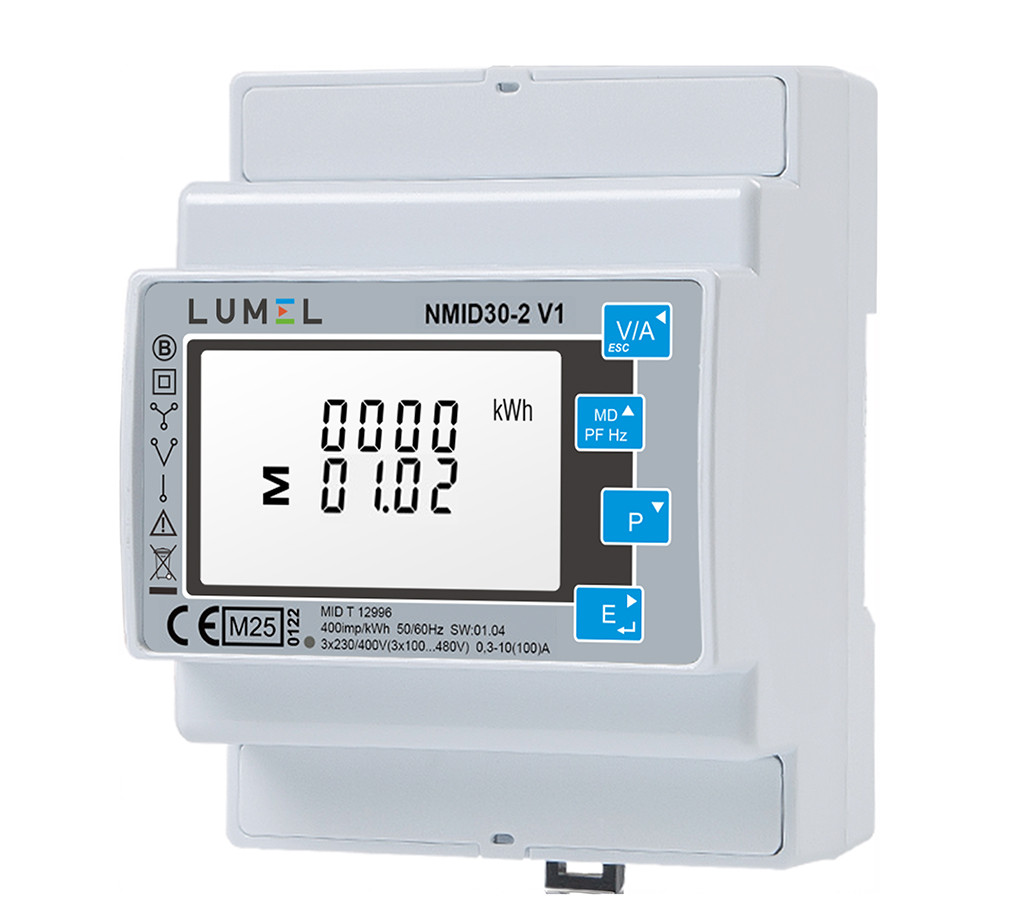

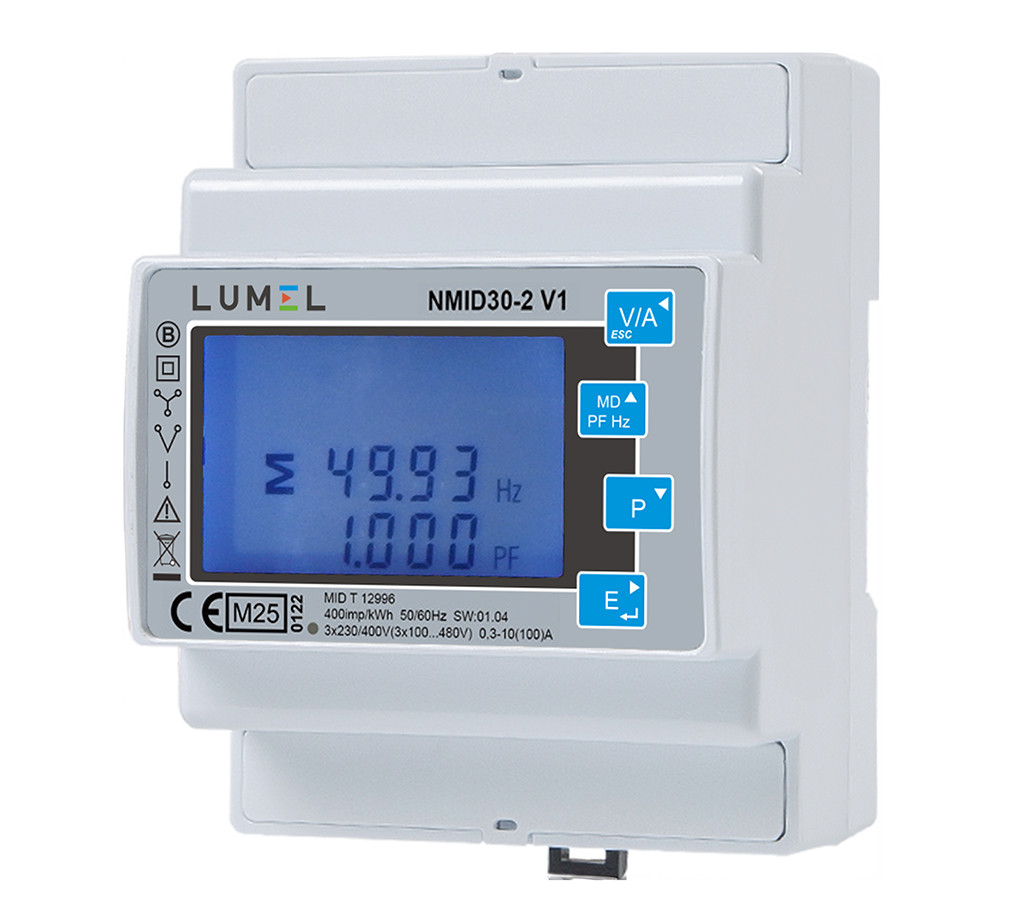

The backlit counter screen can display up to 16 different measured values.
The counter can be configurated by using buttons. It has a current input for direct measurement of maximum 100A.
- Compliance with the MID directive (B+D modules)
- Active energy measurement in B class
- Measured active energy consumed and returned
- Measurement inputs up to 100A direct current measurement (NMID30-2)
- Built-in pulse output
- RS-485 digital interface with Modbus RTU protocol
- Programmable current direction for correction of reversely connected transformers
Measured parameters
- Phase to phase tension
- Phase voltage
- Frequency
- THD of current and voltage
- Current in the neutral wire (calculable)
- Maximum average current
- Active, reactive, apparent power
- Averaged maximum active power
- Power factor
- Active energy consumed
- Active energy returned
- Reactive inductive energy
- Reactive capacitive energy
- Total active energy
- Total reactive energy
