Characteristic:

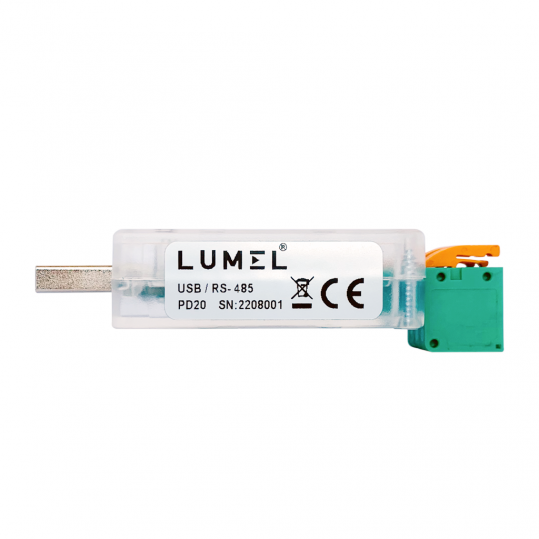

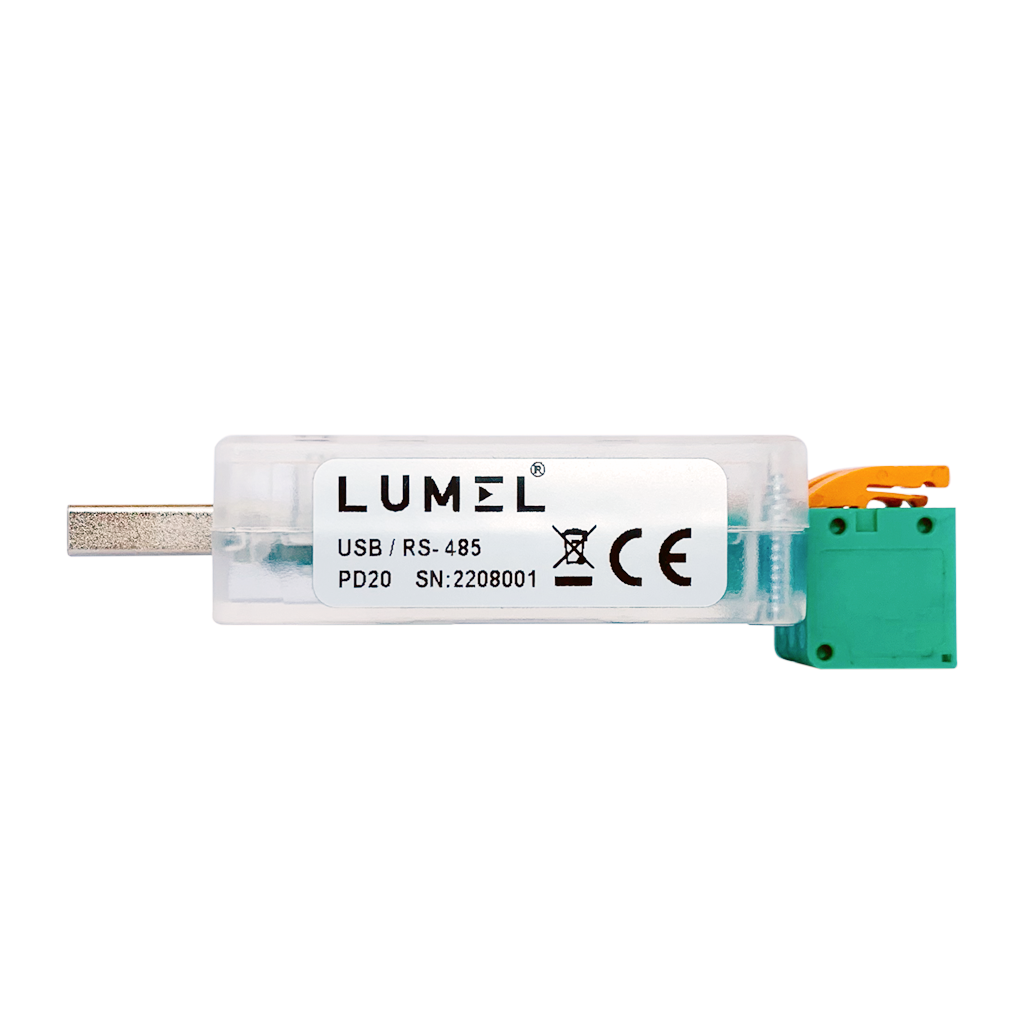

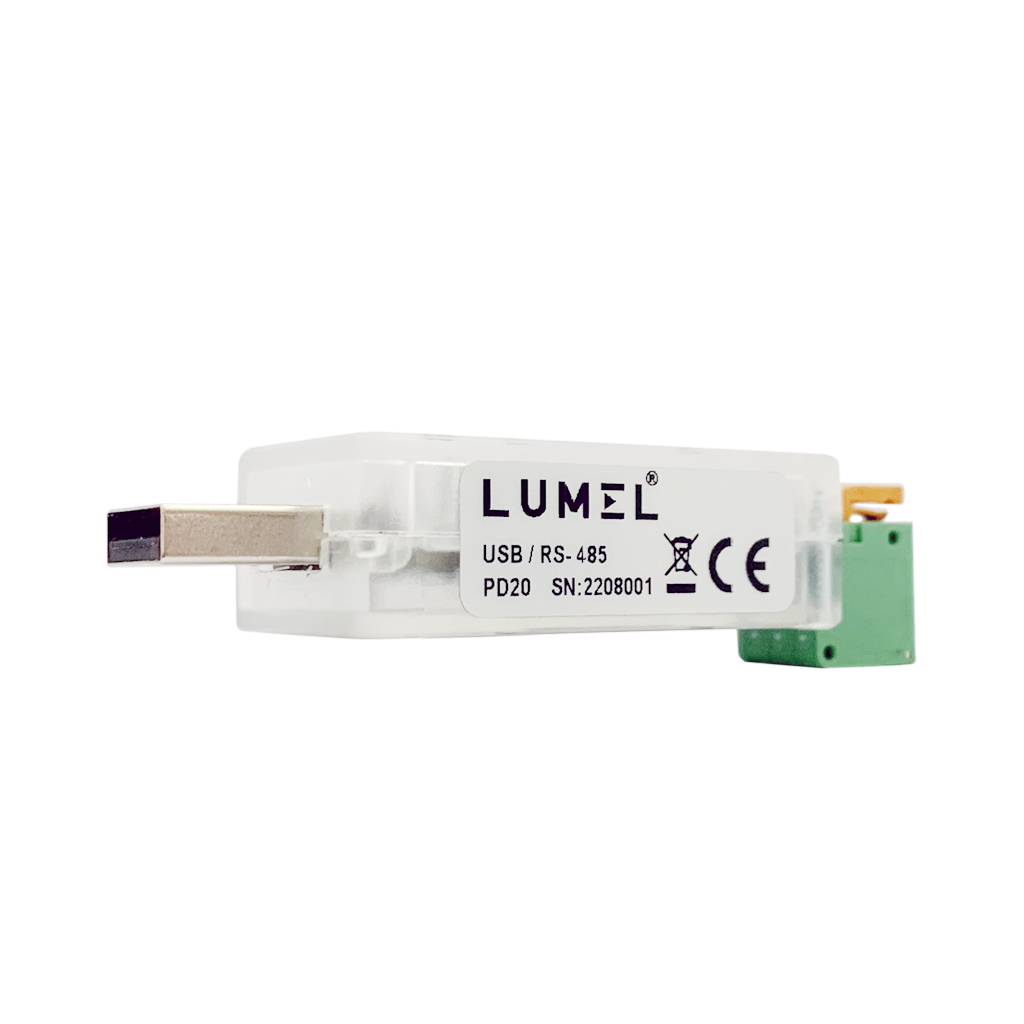

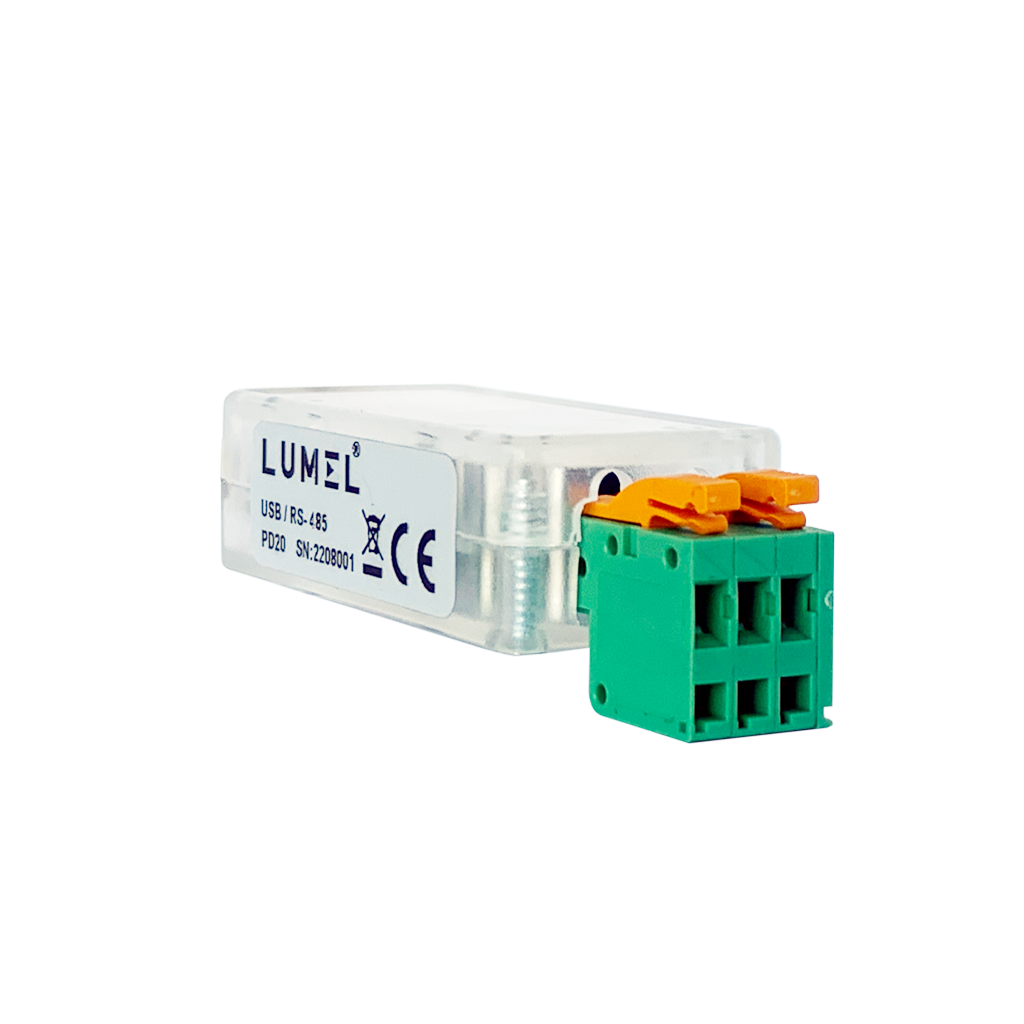

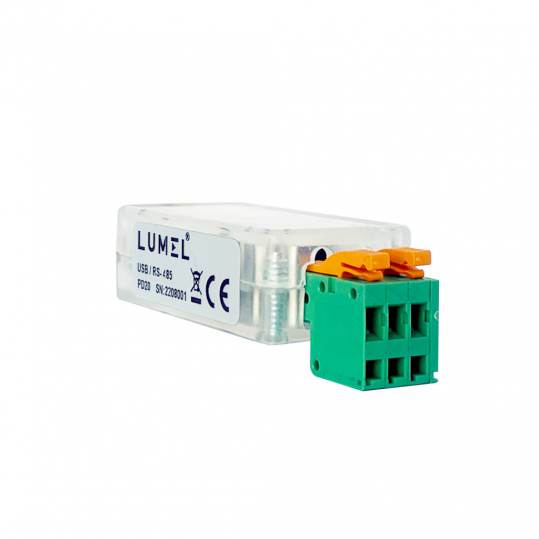

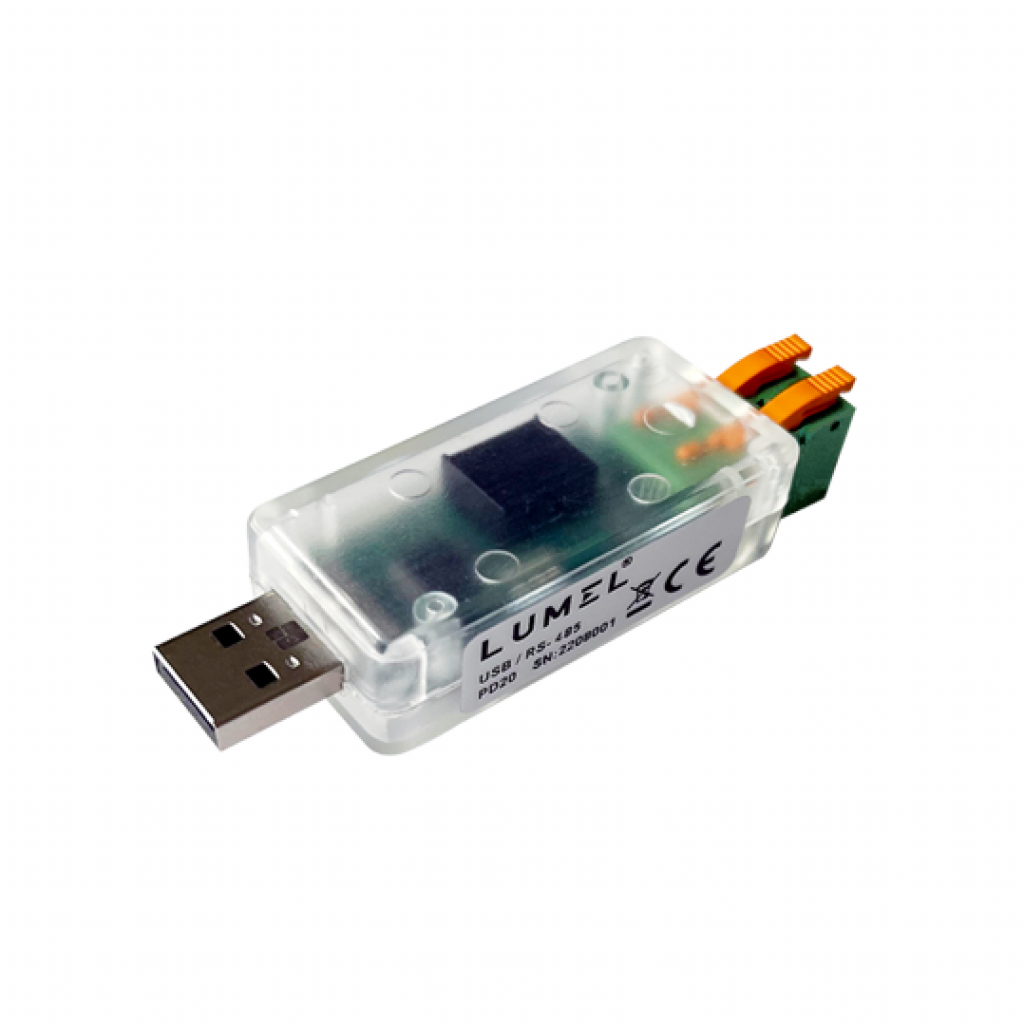

- In PD20 converter are used 2 interfaces (USB, RS485) - galvanically isolated.
- USB interface (type A) – destined for the device communication with the computer.
- RS-485 interface - destined for the communication with devices from the object side.
- Compliance with the standard USB 1.1 and USB 2.0.
- Data transmission rate up to 115.2 kbps.
- Support virtual serial port (COM).
- Bi-directional data transmission (half duplex).
- Device supplied from USB port.
- External dimension: 76 x 25 x 20mm.
- Converter does not interfere into the structure of data transmission and is compatible with many industrial communication protocols.
